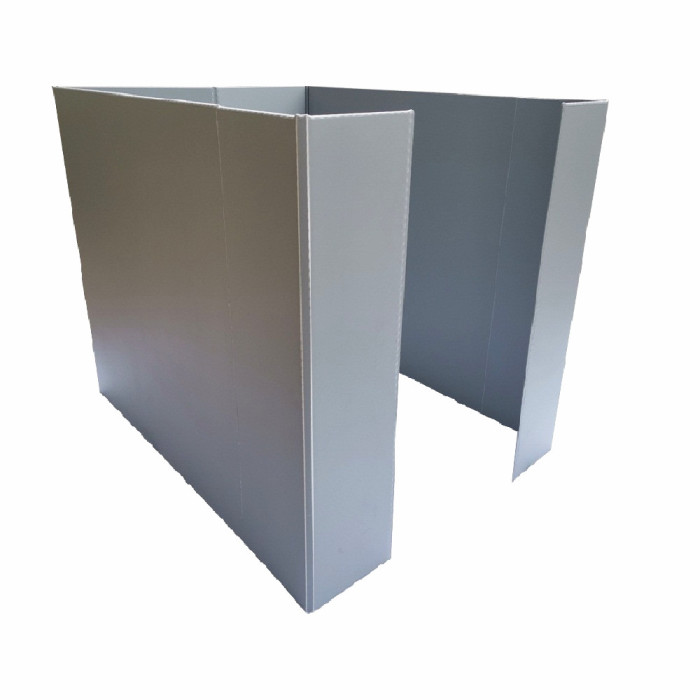

Large Collapsible PP plastic packaging container pallet sleeve boxes

Large Collapsible PP plastic packaging container pallet sleeve boxes
Large Collapsible PP plastic packaging container pallet sleeve boxesLarge Collapsible PP plastic packaging container pallet sleeve boxesLarge Collapsible PP plastic packaging container pallet sleeve boxesLarge Collapsible PP plastic packaging container pallet sleeve boxesLarge Collapsible PP plastic packaging container pallet sleeve boxes

Large Collapsible PP plastic packaging container pallet sleeve boxes

China manufacturer foldable durable packaging box plastic honeycomb pallet sleeve container
CategoriesPlastic Pallet Sleeve System
BrandPolyreflex
ModelPR-plastic packaging box
ProductPP plastic packaging container pallet sleeve boxes
Provided Servicemanufacture,process,pack,load,custom & source
Custom Workshape, processing, printing, packing, mould..
CertificateRoSH, REACH, V0-V2 @UL94, No Lead, No Formaldehyde
Main ColorPallet box: grey; pallet & lid: black
Main Applicationpackaging, turn over, storage, shipping, logistics
Size Range370-1470mm
FOB portShanghai, China
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal, O/A
Download DOCpdf icon
Update TimeApr 27,2024
Detail Information

Polyreflex Pallet Sleeve System

  • Collapsible
  • Reusable
  • Heavy Load
  • Description
  • Standard Sizes
  • Stacked Layer
  • Custom Sleeve Packs
  • Folding Steps
  • Folding Type
  • Product Images

Description

Large Collapsible PP plastic packaging container pallet sleeve boxes

includes a pallet base, a top lid, as well as a foldable or two-piece sleeve. The pallet and top lid are manufactured from plastic HDPE material, the sleeve unfold standing between pallet and lid when use, collapse when unuse to save space and easy transport and storage.

Polyreflex sleeve boxes are an excellent and low-cost alternative to molded bulk boxes. Use them for closed loop material handling and as returnable and reusable bulk packaging. Their unique construction makes them the strongest pallet sleeves in the industry. It can save the transportation cost up to 40%-80% by the recycled use of both lining and box.

The pallets and lids are nestable and the sleeves are collapsible, yielding improved warehouse utilization and reducing freight costs. One truck of folded sleeve packs can be used to transport 10 trucks of assembled pallet boxes with cargo.

Pallet Sleeve Container with doors

Strong in All Directions

Polypropylene honeycomb sleeves have a very stable structure and strong stacking capacity. Whether it is dynamic load or static load, it can safely stack and protect the product.

Easy to assemble

Polyreflex pallet sleeve system is easy to assemble and disassemble.  It takes one person only a minute to assemble or disasemble a container: taking off the lid, unfold the sleeves, put back the lid. No need any special tools to help the job.

Cost-effective

Lightweight polypropylene pallet box sleeve has more cycles than cardboard sleeves. Although the price of PP sleeve is higher, it usually paying for itself within 6 months. A plastic sleeve container can withstand more than 20,000 folds.

Easy to transport and store

Polyreflex plastic polypropylene pallet containers have the standard sizes 4 feet pallet, easy to use forklift to liftup, put down and transport. The sleeve part can fold inside the pallet and lid, then pile up to store.

sizes of sleeve packs

Custom design available

Polyreflex provide flexible custom service for the pallet sleeve pack system, customer could custom its shape and design by sending its drawing, or just describe your needs, we offer the solutionn for you.

Standard Sizes

Components Lid Sleeve Pack Pallet
Material        Thermoformed HDPE                 Polypropylene                Thermoformed HDPE
Thickness of material ——  8 - 12mm ——
Weight of material —— 2500 - 4200 g/m2 ——
External length 700 - 1470mm 660 - 1430mm 700 - 1470mm
External width 400 - 1150mm 360 - 1110mm 400 - 1150mm
External height 500 - 1200mm
Stack layer 1+1 for dynamic load, 1+3 for static load
Payload 200 - 400KG
Max. ballast 600 - 1200KG

Stacked Layer

Stacked Layer of pallet boxes
Injection molded HDPE pallet

Polyreflex all-in-one collapsible sleeve packs

Injection molded HDPE top lid and pallet

Thermoformed HDPE top lid and pallet nested together

Polyreflex all-in-one collapsible sleeve packs

PP honeycomb sleeves pile up after folded

The bottom pallets can be nested

Custom height, color and shape of sleeves are available

Custom heights and double color pallet sleeve packs are available

Custom heights and double color sleeves are available

The spacer layer in the plastic pallet box

With windows, locks, inside seperators are optional

plastic sleeve packs with PVC profiles

Polyreflex provides sleeve packs with PVC profiles or steel tubes

Custom printing for plastic sleeve box

Various structure of sleeves are customed per customer's needs

Folding Steps

the assembled plastic pallet container

❶ The assembled pallet sleeve

Remove the top lid

❷ Remove the top lid

pallet box without lid

❸ Take out the goods from the sleeve box

foldable plastic sleeve boxes

❹ Fold the sleeve up

Lay the folded sleeve pack flat on the pallet

❺ Lay the folded sleeve pack flat on the pallet

Put the lid on the sleeve pack

❻ Put the lid on to make the pallet box all-in-one

Folding Type

M Fold - sleeve packs

M Fold - sleeve width  is less than or equal to pallet width

Z Fold - sleeve packs

Z Fold - sleeve width is greater than pallet width

I Fold - suitable for small sleeve packs

I Fold - suitable for small boxes

Processing Steps

Die-cut the PP honeycomb panel

Ⅰ. Sealing edges, the round and flat edge are optional

Sealing edges for pallet sleeves

Ⅱ. Die-cut the PP honeycomb panel

Opening doors on the plastic sleeves

Ⅲ. Opening windows on polypropylene sleeves

make creasing on the pp sleeves

Ⅳ. Make the fold and corner scores

Custom printing for sleeve packs

Ⅴ. Many colors custom printing

Butt welding for sleeve pack

Ⅵ. Butt welding two pieces

Product Images

Top and Pallet

Polyreflex standard bottom pallet, steel tube reinforced pallet with locks, lids and pallets in stock. Please contact us for more designs and sizes of lids and pallets.

HDPE lid and pallet

Pallet Sleeves

Finished Polyreflex sleeve sleeve packs waiting for packing and shipping.

plastic sleeve packs in warehouse

PP Honeycomb Panels

Pre-cutting on production line and die-cutting polypropylene honeycomb panel ready to make sleeve packs.

die-cutting honeycomb panel

Packing and Loading

Loading sleeve packs in bulk or with pallet.

bulk packed plastic sleeve packs
FAQ
Are you a trading company or a manufacturer?
more>

Polyreflex is a professional manufacturer with more than 15 years experiences, with five production sites located in China and one production site located in Vietnam.

Can you cut to size or print or thermoform?
more>

Of course we can. Polyreflex processing center has a variety of advanced processing equipment, and a well-trained and experienced technical team to meet the customized needs of customers, such as cutting, machining, vacuum forming, injection molding, blow molding, assembly, etc.

What is the payment method?
more>

T/T, L/C, PayPal, Western Union payment are available. Polyreflex is an Alibaba certified supplier, and it is also okay to place an order through Alibaba. https://polyreflex-cn.en.alibaba.com/

What is the lead time?
more>

Usually 15 to 20 days. The specific lead time is best to be confirmed after letting us know the order details. We have stock of plastic sheets to meet urgent needs, and we can also advance the delivery time for customers according to the production condition.
