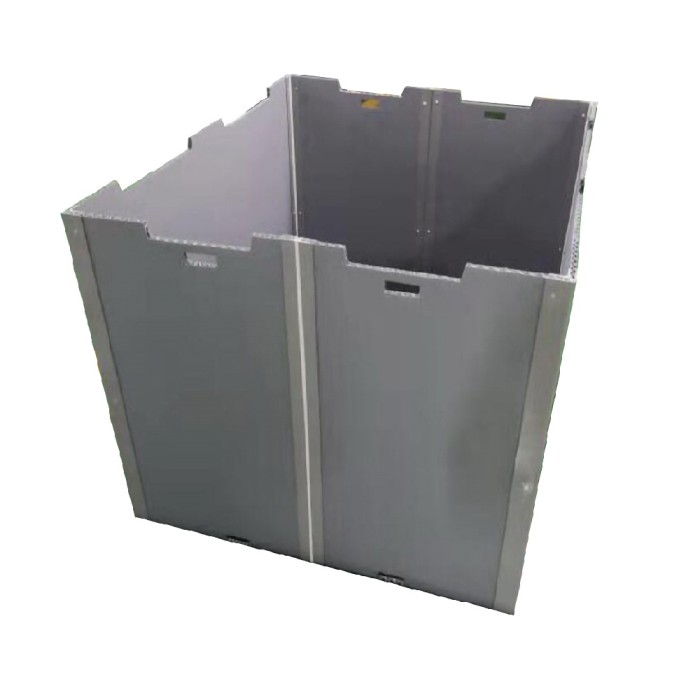

Plastic Polypropylene Pallet Sleeve Packs for Shipping, Moving & Storage

Plastic Polypropylene Pallet Sleeve Packs for Shipping, Moving & Storage
Plastic Polypropylene Pallet Sleeve Packs for Shipping, Moving & StoragePlastic Polypropylene Pallet Sleeve Packs for Shipping, Moving & StoragePlastic Polypropylene Pallet Sleeve Packs for Shipping, Moving & StoragePlastic Polypropylene Pallet Sleeve Packs for Shipping, Moving & StoragePlastic Polypropylene Pallet Sleeve Packs for Shipping, Moving & Storage

Plastic Polypropylene Pallet Sleeve Packs for Shipping, Moving & Storage

excellent and low-cost alternative to molded bulk boxes, as returnable and reusable bulk packaging, easy to ship, heavy to load
CategoriesPlastic Pallet Sleeve System
BrandPolyreflex
ModelPR- pallet sleeve packs
ProductPlastic Polypropylene Pallet Sleeve Packs
Provided ServiceEdge sealing,welding,die-cutting,window,print...
Custom WorkColor, size, weight, function, packing,processing
CertificateRoSH, REACH, V0-V2 @UL94, No Lead, No Formaldehyde
Main ColorPallet sleeve: grey; lid & pallet: black
Main Applicationshipping,moving,storage,logistics, packaging
FOB portShanghai, China
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal, O/A
Download
Update TimeDec 12,2024
Detail Information

Polyreflex Pallet Sleeve System

  • Returnable
  • Lightweight
  • Heavy Load
  • Description
  • Standard Sizes
  • Stacked Layer
  • Custom Sleeve Packs
  • Folding Steps
  • Folding Type
  • Product Images

Description

Plastic Polypropylene Pallet Sleeve Packs for Shipping, Moving & Storage

is developed to be light weight, heavy duty, reusable, collapsible, provide a perfect solution for logistics and turnover systems to support, store, protect and transport unit loads of bulk goods or materials.

Polyreflex pallet sleeve system adopts all-in-one design, when empty, sleeve packs are collapsed, the top lid, pallet base and sleeve are available as a set, providing an excellent empty container return rate, helping to reduce transportation costs and storage space.

The pallet sleeve box sysstem can play very important role in flowers and trees transportation, vegetable transportation, electronic display, auto parts, car headlights, car circuit assembly, car battery pack, new energy vehicle battery pack.

Pallet Sleeve Container with doors

Effective Protection

Polypropylene PP honeycomb panel is not only moisture-proof and dustproof, but also can be flame retardant and antistatic. The pallet sleeve box made from pp honeycomb can avoid various situations in transportation to a greater extent.For example, protect the goods from the bumping and static electricity damage during transportation.

Space-efficient

The pallets and lids are nestable and the sleeves are collapsible, yielding improved warehouse utilization and reducing freight costs. One truck of folded sleeve packs can be used to transport 10 trucks of assembled pallet boxes with cargo.

Cost-effective

Lightweight polypropylene pallet box sleeve has more cycles than cardboard sleeves. Although the price of PP sleeve is higher, it usually paying for itself within 6 months. A plastic sleeve container can withstand more than 20,000 folds,and has the service life about 15-20 times of carton boxes.

Easy to Assemble

Polyreflex pallet sleeve system is easy to assemble and disassemble. It takes one person only a minute to assemble or disasemble a container: taking off the lid, unfold the sleeves, put back the lid. No need any special tools to help the job.

sizes of sleeve packs

Easy to transport and store

Polyreflex plastic polypropylene pallet containers have the standard sizes 4 feet pallet, easy to use forklift to liftup, put down and transport. The sleeve part can fold inside the pallet and lid, then pile up to store.

Standard Sizes

Components Lid Sleeve Pack Pallet
Material        Thermoformed HDPE
         Polypropylene                Thermoformed HDPE
Thickness of material ——   - 12mm
——
Weight of material —— 2500 - 4200 g/m2 ——
External length 700 - 1470mm
660 - 1430mm
700 - 1470mm
External width 400 - 1150mm   360 - 1110mm 400 - 1150mm
External height   500 - 1200mm
Stack layer 1+1 for dynamic load, 1+3 for static load
Payload 200 - 400KG
Max. ballast 600 - 1200KG

Stacked Layer

Stacked Layer of pallet boxes
Injection molded HDPE pallet

Blow molded HDPE pallet

Injection molded HDPE top lid and pallet

Blow molded HDPE top lid and pallet can be nested

Polyreflex all-in-one collapsible sleeve packs

Polyreflex all-in-one collapsible sleeve packs

The bottom pallets can be nested

Pallet sleeves set easy and stable to stack

Custom Sleeve Packs

Custom heights and double color pallet sleeve packs are available

Custom heights and double color sleeves are available

The spacer layer in the plastic pallet box

The bottom pad and the door opening are optional

plastic sleeve packs with PVC profiles

Polyreflex provides sleeve packs with PVC profiles or steel profiles

Custom printing for plastic sleeve box

Custom printing of sleeve is available for easy identification

Folding Steps

the assembled plastic pallet container

❶ The assembled pallet sleeves

Remove the top lid

❷ Remove the top lid

pallet box without lid

❸ Take out the inner goods

foldable plastic sleeve boxes

❹ Fold the sleeve up

Lay the folded sleeve pack flat on the pallet

❺ Lay the folded sleeve pack flat on the pallet

Put the lid on the sleeve pack

❻ Put the lid on the sleeve and pallet

Folding Type

M Fold - sleeve packs

M Fold - sleeve width is less than or equal to pallet width

Z Fold - sleeve packs

Z Fold - sleeve width is greater than pallet width

I Fold - suitable for small sleeve packs

I Fold - suitable for small sleeve boxes

Processing Steps

Die-cut the PP honeycomb panel

Ⅰ. Die-cut the PP honeycomb panel

Sealing edges for pallet sleeves

Ⅱ. Sealing edges, the round edge and flat edge are optional

Opening doors on the plastic sleeves

Ⅲ. Opening windows

make creasing on the pp sleeves

Ⅳ. Make the creasing line

Custom printing for sleeve packs

Ⅴ. Customize printing

Butt welding for sleeve pack

Ⅵ. Butt welding

Product Images

Lid and Pallet

Polyreflex standard bottom pallet, steel tube reinforced pallet, lids and pallets in stock. Please contact us for more designs and sizes of lids and pallets.

HDPE lid and pallet

Sleeve Packs

Finished Polyreflex pallet sleeve packs waiting for packing and shipping.

plastic sleeve packs in warehouse

Application

Application examples: flowers and trees transportation, vegetable transportation, electronic display, new energy vehicle battery pack.

die-cutting honeycomb panel

Packing and Loading

Loading sleeve packs in bulk or with pallet.

bulk packed plastic sleeve packs
FAQ
Are you a trading company or a manufacturer?
more>

Polyreflex is a professional manufacturer with more than 15 years experiences, with five production sites located in China and one production site located in Vietnam.

Can you cut to size or print or thermoform?
more>

Of course we can. Polyreflex processing center has a variety of advanced processing equipment, and a well-trained and experienced technical team to meet the customized needs of customers, such as cutting, machining, vacuum forming, injection molding, blow molding, assembly, etc.

What is the payment method?
more>

T/T, L/C, PayPal, Western Union payment are available. Polyreflex is an Alibaba certified supplier, and it is also okay to place an order through Alibaba. https://polyreflex-cn.en.alibaba.com/

What is the lead time?
more>

Usually 15 to 20 days. The specific lead time is best to be confirmed after letting us know the order details. We have stock of plastic sheets to meet urgent needs, and we can also advance the delivery time for customers according to the production condition.
