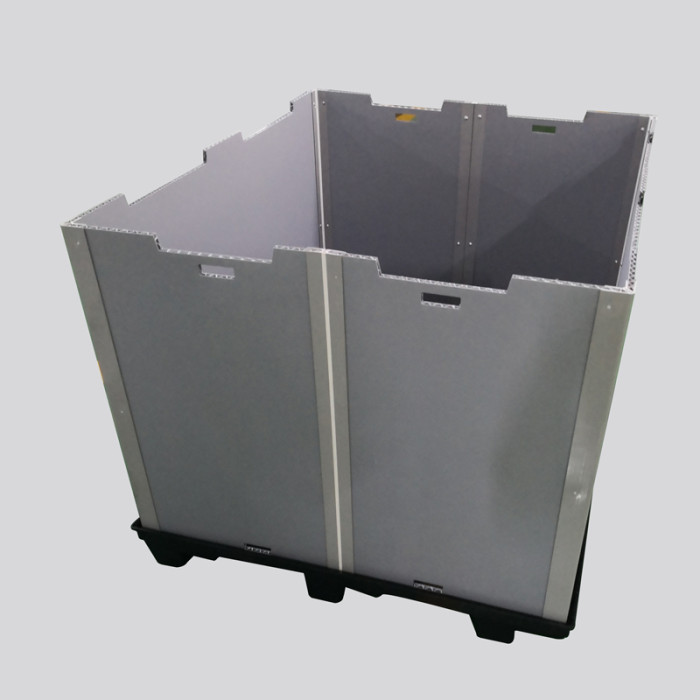

China Manufacture Custom or OEM Collapsible PP Plastic Pallet Sleeve Box System

China Manufacture Custom or OEM Collapsible PP Plastic Pallet Sleeve Box System
China Manufacture Custom or OEM Collapsible PP Plastic Pallet Sleeve Box SystemChina Manufacture Custom or OEM Collapsible PP Plastic Pallet Sleeve Box SystemChina Manufacture Custom or OEM Collapsible PP Plastic Pallet Sleeve Box SystemChina Manufacture Custom or OEM Collapsible PP Plastic Pallet Sleeve Box SystemChina Manufacture Custom or OEM Collapsible PP Plastic Pallet Sleeve Box System

China Manufacture Custom or OEM Collapsible PP Plastic Pallet Sleeve Box System

pallet sleeves are made by pp honeycomb or x type board, we can custom any design of the sleeve box
CategoriesPlastic Pallet Sleeve System
BrandPolyreflex
ModelPR-PS
BrandPlastic Pallet Sleeve System
Provided ServiceDie-cutting, CNC Engraveing,Sealing, Bending, Welding, Printing,Attaching Spunbond…
Custom WorkColor, Width, Length, Size, Weight, Packing, Processing
CertificateRoSH, REACH, V0-V2 @UL94, No Lead, No Formaldehyde Content.
Main Colorpallet sleeve: grey; lid & pallet: black
Main Applicationlogistics, packing, storing, moving
Update Time2019-09-17
FOB portShanghai, China
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal, O/A
Download
Update TimeOct 7,2024
Detail Information
DETAIL INFORMATIONSPolyreflex Plastic Pallet Sleeve System
Plastic Pallet Sleeve System

800*600
1100*1100
1140*980
1150*1150
1200*800
1200*1000
1220*1140
1350*1150
1470*1150
1600*1150
2070*1150


Polyreflex Plastic Pallet Sleeve System
High Strength & Light Weight & Save Space
Pallet Sleeve Systems are an excellent and low-cost alternative to
 molded bulk boxes. Use them for closed loop material handling and
    as returnable and reusable bulk packaging. Their unique
      construction makes them the strongest pallet sleeves in the
        industry. It can save the transportation cost up to 40%-80% by the
          recycled use of both lining and box.
Features

  • Non-bowing                              Maximum strength in all directions
  • Base and cover                          Easy to fold flat for space saving
  • Easy to assemble                       Stackable when used with pallet
  • No V.O.C. Emissions                   Eco-friendly - 100% recyclable
  • Nontoxic & Hypoallergenic              Storage or return shipment
  • Resistant to chemical agents           Light weight & waterproof
  • Printable in many colors
Product Available

  PR 0806
H 700
PR 1111
H 900
PR 1140
H 900
PR 1150
H 900
PR 1208
H 900
PR 1210-3
H 1000
PR 1210-8
H 1000
PR 1220
H 1000
PR 1350
H 1000
PR 1470
H 1000
PR 1600
H 1000
PR 2070
H 1000
Material Pallet Twin-sheet HDPE
Reinforced - - - - - - Steel Rod
Reinforced
- - - - -
Lid Twin-sheet HDPE
Sleeve PP - 10mm - 3000g PP Fiber-glass Reinforced - 11mm - 4000g PP - 10mm - 3000g PP -11mm -3500g
Weight in KG Tare 17 31 30 32 29 33 56 38.5 40 44 52 61
Payload 200 300 300 300 280 300 800 300 300 300 300 300
Max Ballast 800 1200 1200 1200 1120 1200 1600 1200 1200 1200 1200 1200
Stack Layer Static 1+3 1+3 1+3 1+3 1+3 1+3 1+1 1+3 1+3 1+3 1+3 1+3
Dynamic 1+1 1+1 1+1 1+1 1+1 1+1 1+1 1+1 1+1 1+1 1+1 1+1
Dimension
in mm
Outside L 800 1100 1140 1150 1200 1200 1200 1220 1350 1470 1600 2070
W 600 1100 980 1150 800 1000 1000 1140 1150 1150 1150 1150
H 700 900 900 900 900 1000 1000 1000 1000 1000 1000 1000
Inside L 760 1060 1100 1110 1160 1160 1160 1180 1310 1430 1560 2030
W 560 1060 940 1110 760 960 960 1100 1110 1110 1110 1110
H 520 720 720 720 720 820 820 820 820 820 820 820
Folded L 800 1100 1140 1150 1200 1200 1200 1220 1350 1470 1600 2070
W 600 1100 980 1150 800 1000 1000 1140 1150 1150 1150 1150
H 238 238 238 238 238 238 238 238 238 238 238 238
Remark:
Sleeve size can be customized according to your request if you have your own pallet/lid system, and gsm of pp honeycomb panel can be produced from 2500-4000gsm accroding to your design.
Stack layer

Folding Steps

PROCESSING WAYSPolyreflex Plastic Pallet Sleeve System
Die-cut
Sealing Edges
Opening Window
Creasing
Printing
Butt Welding
Polyreflex Plastic Pallet Sleeve System Application Examples
Polyreflex Plastic Pallet Sleeve System are excellent alternative to Wooden Pallet system,Heavy Duty Carton System etc
Lid and Pallet

Normal Lid
Normal Pallet
Steel Rod Reinforced Pallet
Lid and Pallet In Stock

Pallet Sleeve System Appearance
